Pulsar

Pulsar, a downlight with low profile bezel; available with two reflectors; 40° multi-faceted and  50° Satin etched, ideal for office, retail and hospitality lighting.

• Wide range of bezels
• Choice of dimming controls, emergency options and colour temperatures
• Any RAL Colour



Downloads

Datasheet

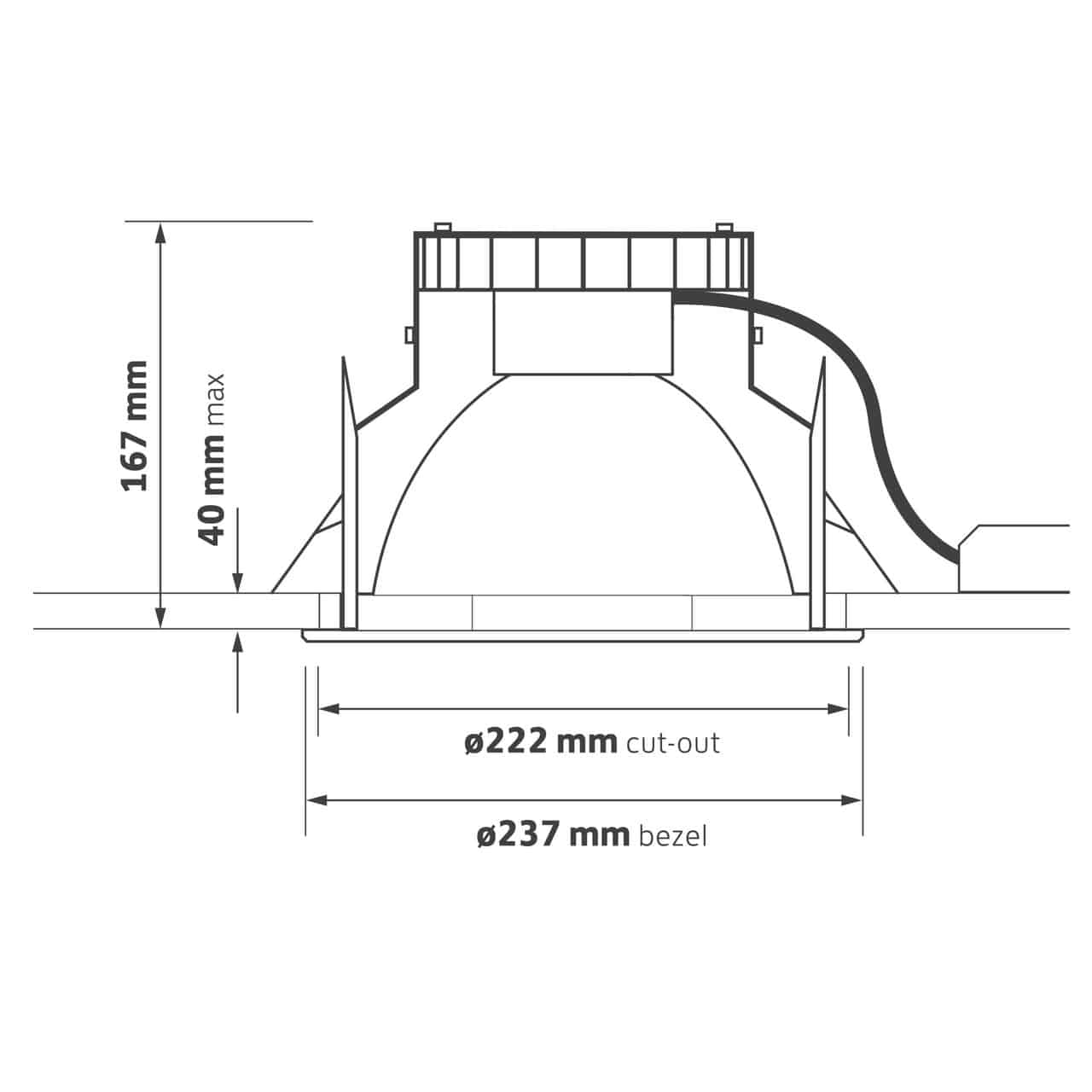

Dimensions
Categories: , , Tags: , , , , , ,

Description

Product Code Lumen Output CCT Wattage Efficacy
PUL LED11 840 BW SA50 1175 840 9.5W 123lm/w
PUL LED20 840 BW SA50 2000 840 17.5W 114lm/w
PUL LED30 840 BW SA50 3075 840 30.5W 100lm/w
PUL LED48 840 BW SA50 4800 840 46.5W 103lm/w
PUL LED18 827-865 BW SA50 1850 927-965 17.5W 106lm/w
Colour Temperature (k) 4000k Colour Rendering Index (CRI) 80
Glare Control (UGR) <19 MacAdam SDCM 3
Frequency (Hz) 50-60 Ingress Protection (IP) IP20
Average Lifespan (Hr) 60,000 Operating Temperatures (&degC) -25 to +30
Voltage (V) 220-240 Electrical Protection Class I

*50,000hr for tuneable white version.

CCT 3000k | 4000k | Tuneable
Emergency 3hr | 3hr Dali
Dimming 0-10v | Switch | Dali
Controls Smart
Trim Colour White 9010 | White 9016 | Black | Any RAL Colour

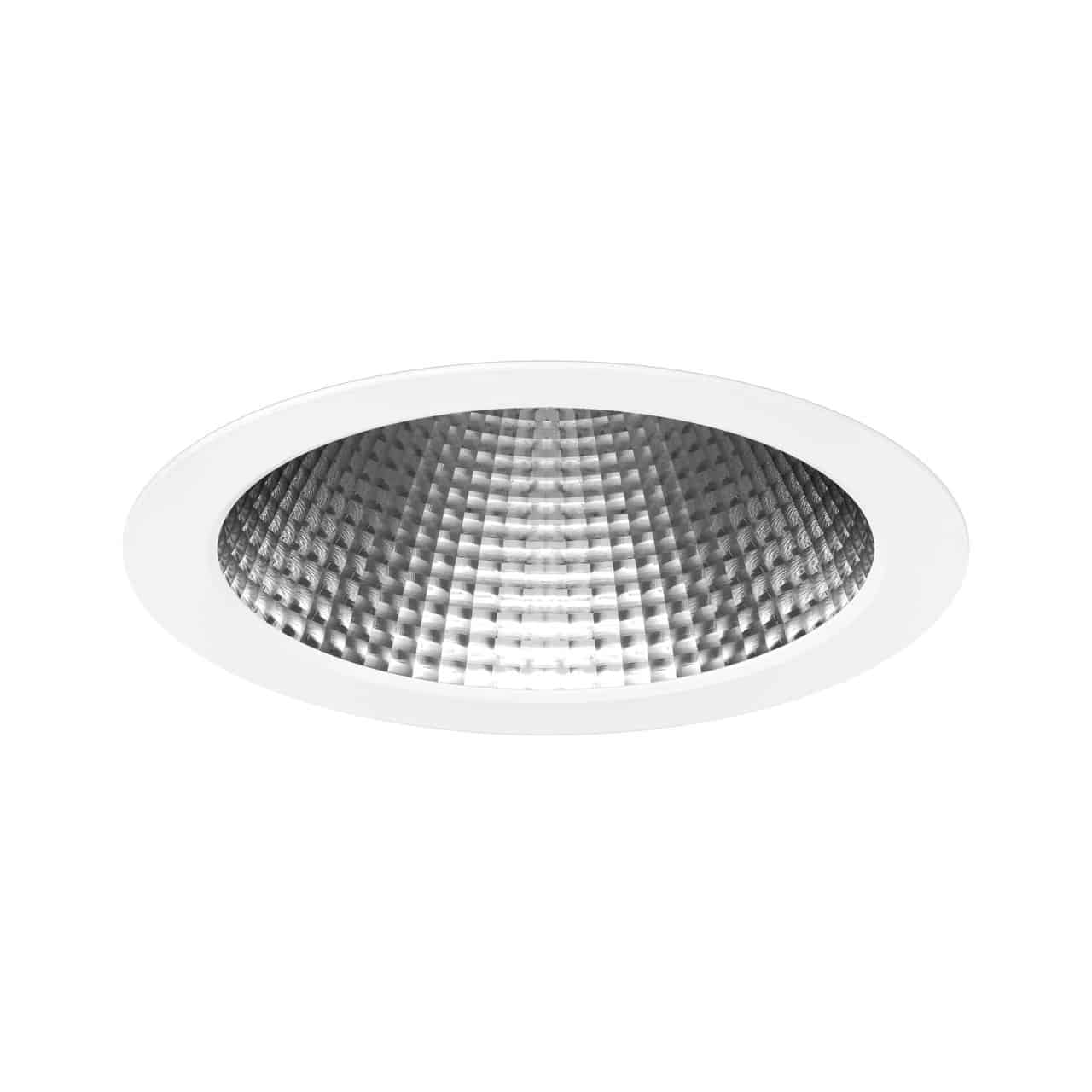

Reflectors 40° | 50°

Trim Colours

White 9016

White 9016

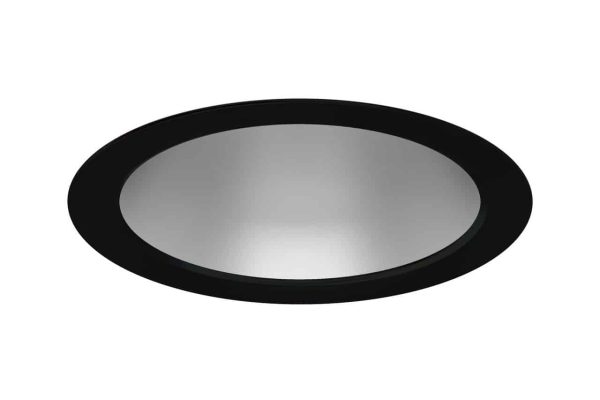

Black

Black

IP Rated Bezels

IP54 Clear Polycarbonate

IP54 Clear Polycarbonate

IP65 Clear Glass

IP65 Clear Glass

IP65 Opal Polycarbonate

IP65 Opal Polycarbonate

IP65 Clear Polycarbonate

IP65 Clear Polycarbonate

Installation Accessories

Adapter Plate

Adapter Plate

Diameter (mm) 237
Cut-out (mm) 222
Height (mm) 167
Weight (kg) 1.3
