Description
| Product Code | HAD SRF LED W E3 |
|---|---|
| Viewing Distance | 28m |
| Ingress Protection (IP) | IP20 |
| Ambient Temperature (Ta) | 0° – 25° |
| Supply Power (W) | 4.4 |
| Charge Power (W) | 1.7 |
| Battery | 4.8v 0.9ah NiCd |
| Voltage (V) | 220-240 |
| Frequency (Hz) | 50-60 |
| Electrical Protection | Class I |
| Emergency | 3hr | 3hr Dali | Self-Test |
|---|---|
| Controls | Smart |
| Colour | White | Silver* |
| Battery | NiCd | LifePO4 |
*Silver is only available in the surface mount version.
Mounting

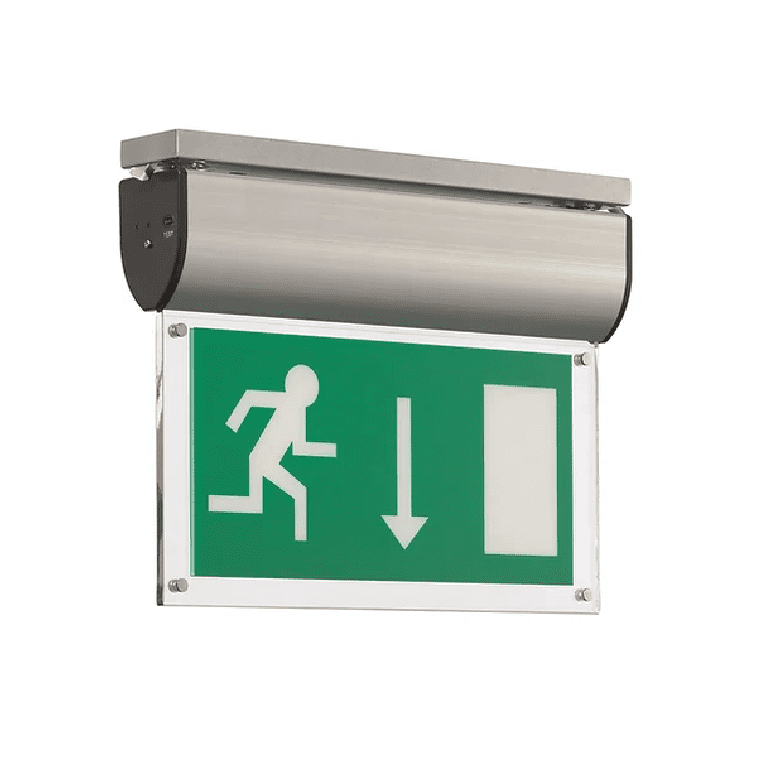

Surface

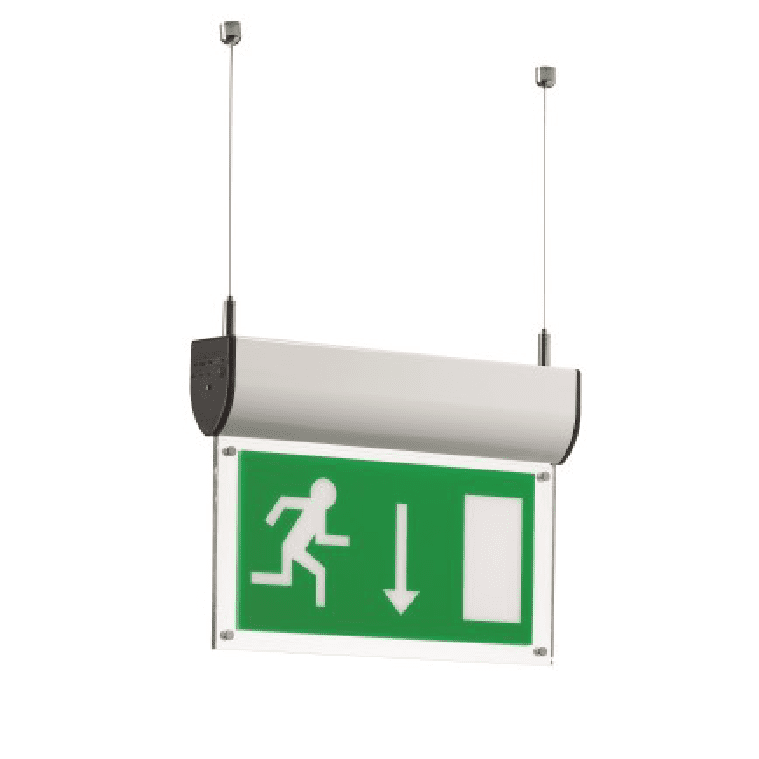

Wire

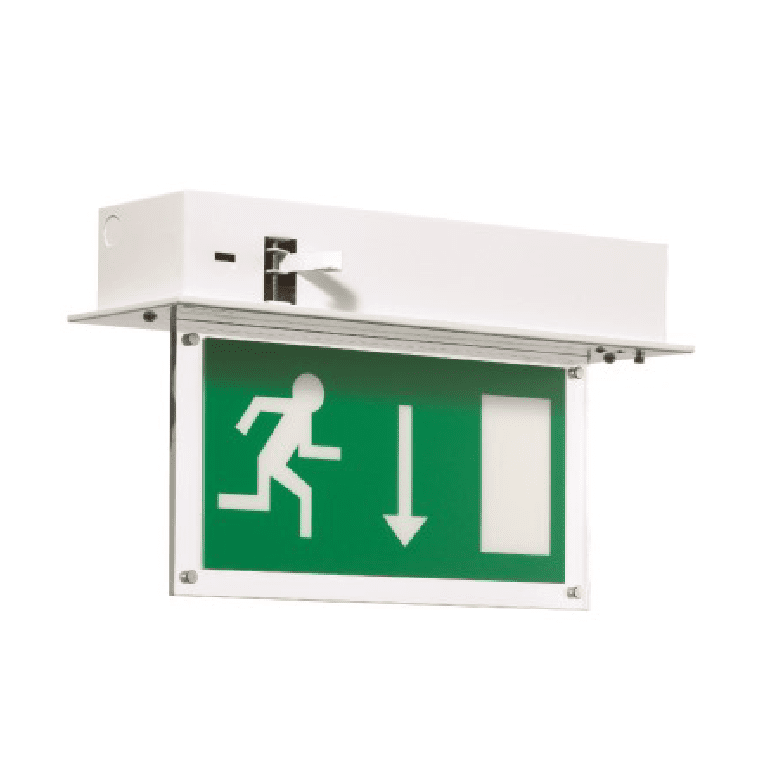

Recessed Mount
Ceiling Bracket
Wall Bracket
Flag Style Bracke
Arrows
Up
Down
Left
Right
Dimensions
| Recessed | Ceiling | Supended | |
|---|---|---|---|
| Length (mm) | 355 | 300 | 300 |
| Width (mm) | 112 | 50 | 50 |
| Height (mm) | 216 | 220 | 220 |
| Drop (mm) | Upto 1000 | ||
| Weight (kg) | 3 | 3 | 3 |
