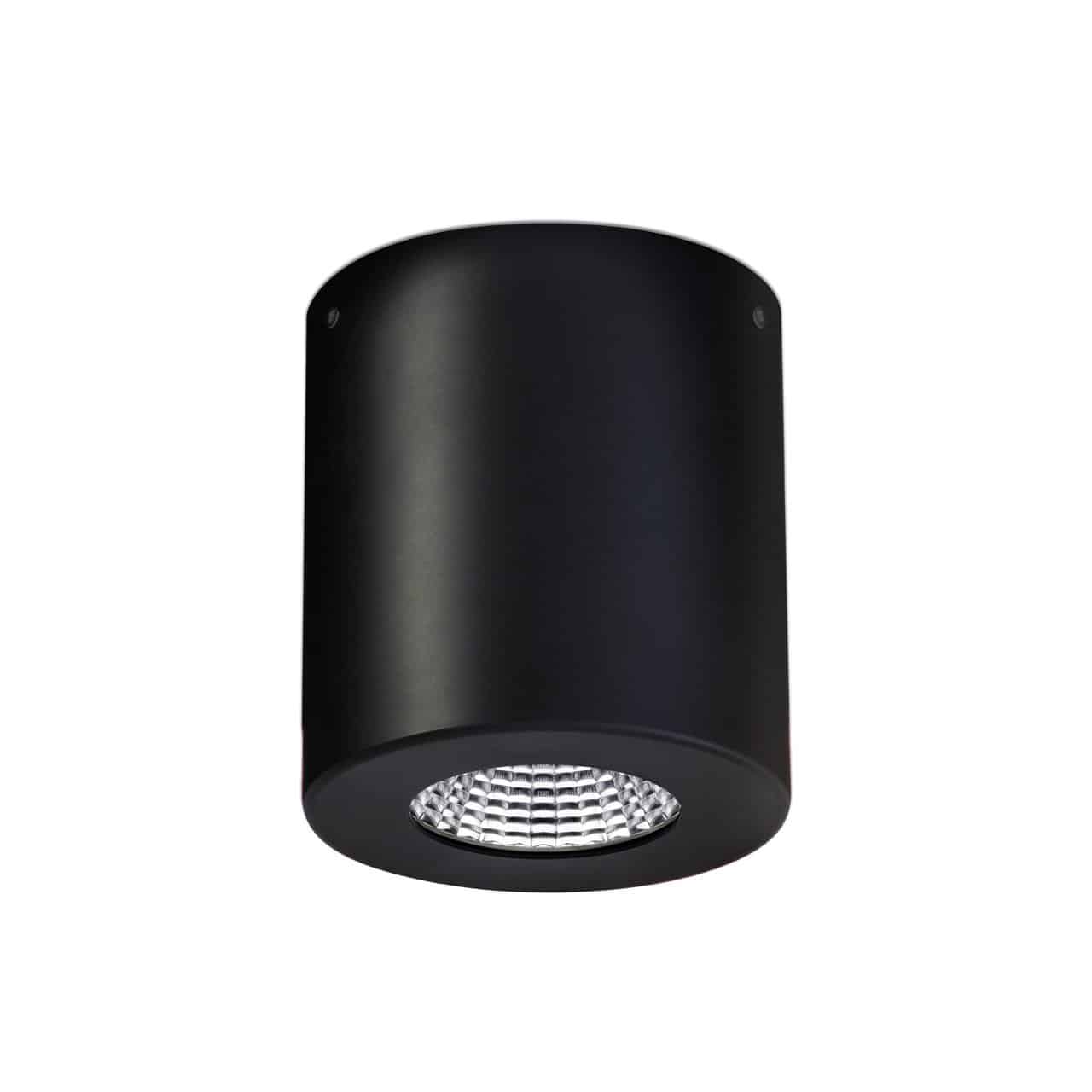

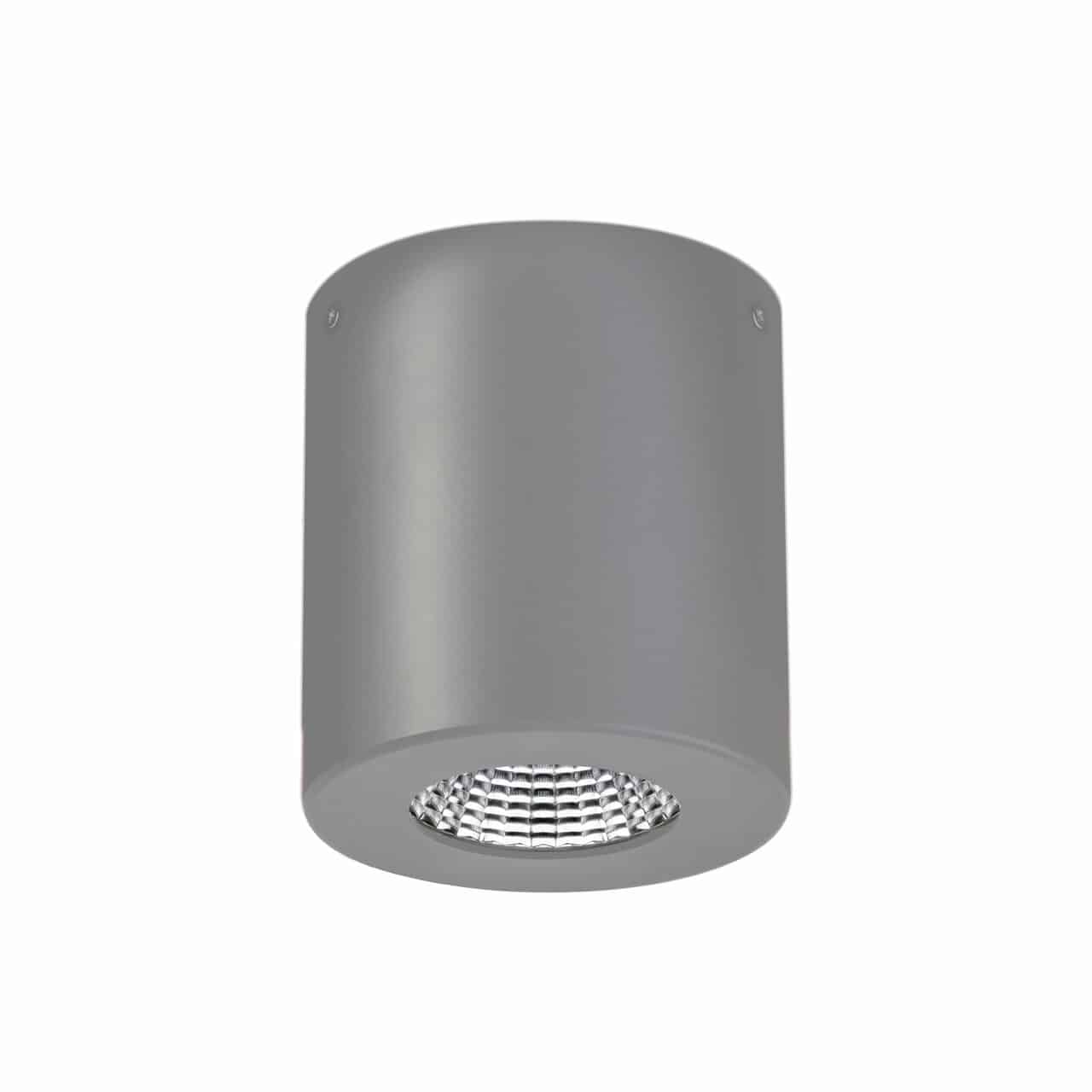

Iris Surface

The Iris Surface LED downlight has a choice of four reflectors: 25°, 60° multi-faceted, 40° specular and 50° Satin etched and a wide range of bezels.

  • Various dimming controls, emergency options and colour temperatures are available
  • Ideal for office, retail and hospitality lighting
  • Also available in Suspended version



Downloads

Datasheet
Dimensions
Categories: , , Tags: , , , , , , , , , , , , ,

Description

Product Code Lumen Output CCT Wattage Efficacy
IRI SRF LED10 840 BW MF40 1050 840 8W 131lm/w
IRI SRF LED17 840 BW MF40 1775 840 14W 126lm/w
IRI SRF LED24 840 BW MF40 2400 840 19W 126lm/w
Colour Temperature (k) 4000k Colour Rendering Index (CRI) 80
Glare Control (UGR) <19 MacAdam SDCM 3
Frequency (Hz) 50-60 Ingress Protection (IP) IP20
Average Lifespan (Hr) 55,000 Operating Temperatures (&degC) -25 to +30
Voltage (V) 220-240 Electrical Protection Class I
CCT 3000k | 4000k
Emergency 3hr | 3hr Dali
Dimming 0-10v | Switch | Dali
Controls Smart
Trim Colour White 9010| White 9016 | Black | Grey | Any RAL Colour
Reflectors 25° | 40° | 50° | 60°

Body Colours

White 9016

White 9016

White 9010

White 9010

Grey

Grey

Black

Black

IP Rated Bezels

IP54 Glass

IP54 Glass

IP54 Etched Glass

IP54 Etched Glass

IP54 Centre Etched Glass

IP54 Centre Etched Glass

Halo Bezels

Frosted Drop Halo.jpg

Frosted Drop Halo.jpg

Frosted Halo

Frosted Halo

Blue Drop Halo

Blue Drop Halo

Blue Halo

Blue Halo

Black Drop Halo

Black Drop Halo

Diameter (mm) 150
Height (mm) 165
Weight (kg) 1
