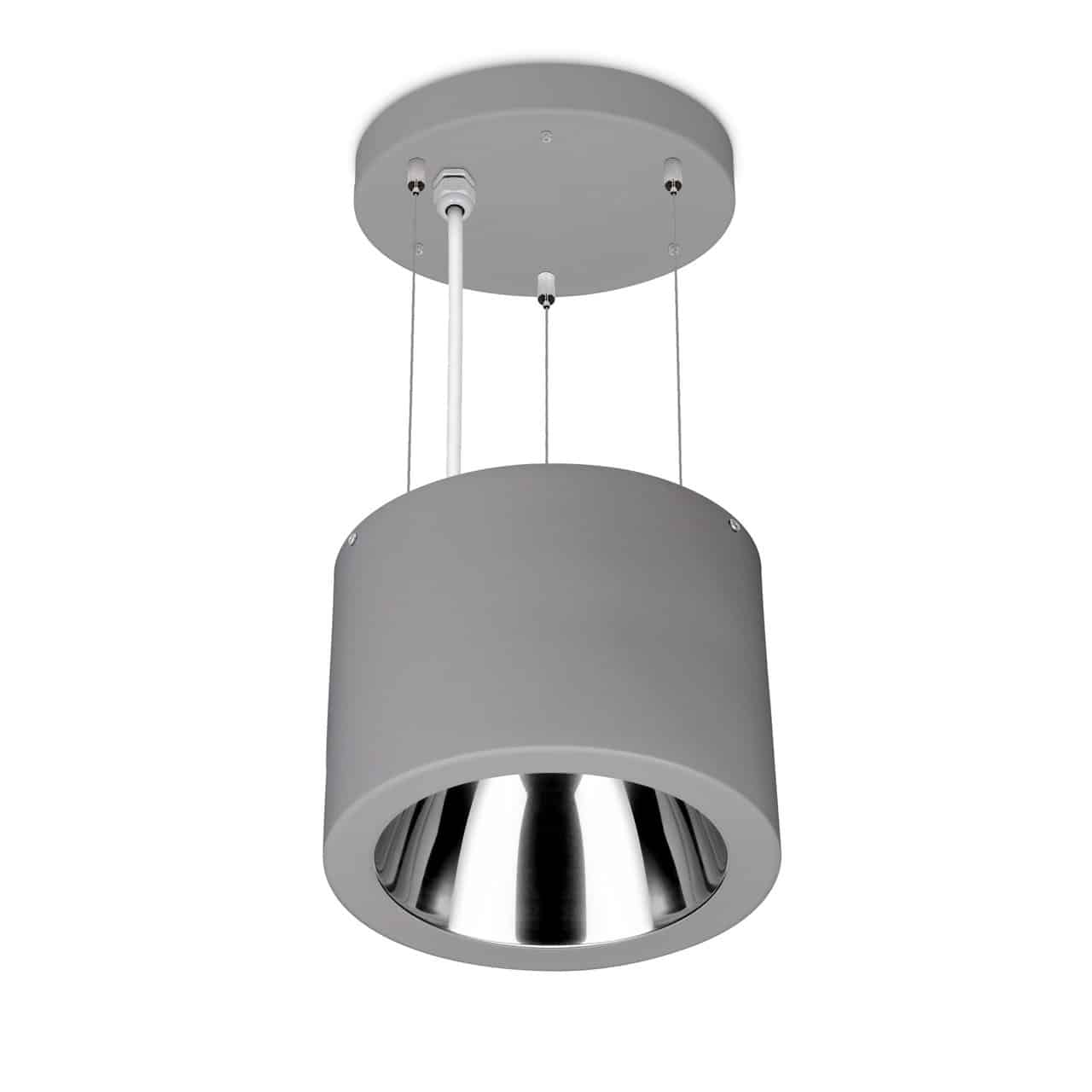

Nova Suspended

Nova Suspended is available with three reflectors; 40° specular, 50° multi-faceted and 60° Satin etched, ideal for office, retail and hospitality lighting.

• Wide range of bezels
• Also available in recessed and suspended versions



Downloads

Datasheet
Dimensions
Categories: , , Tags: , , , , ,

Description

Product Code Lumen Output CCT Wattage Efficacy
NOV SUS LED9 840 BW SA60 975 840 10W 98lm/w
NOV SUS LED17 840 BW SA60 1750 840 18W 97lm/w
NOV SUS LED26 840 BW SA60 2650 840 27W 98lm/w
Colour Temperature (k) 4000k Colour Rendering Index (CRI) 80
Glare Control (UGR) <19 MacAdam SDCM 3
Frequency (Hz) 50-60 Ingress Protection (IP) IP20
Average Lifespan (Hr) 50,000 Operating Temperatures (&degC) -25 to +30
Voltage (V) 220-240 Electrical Protection Class I
CCT 3000k | 4000k
Trim Colour White | Grey | Black | Any RAL Colour
Reflectors 40° | 50° | 60°

Body Colours

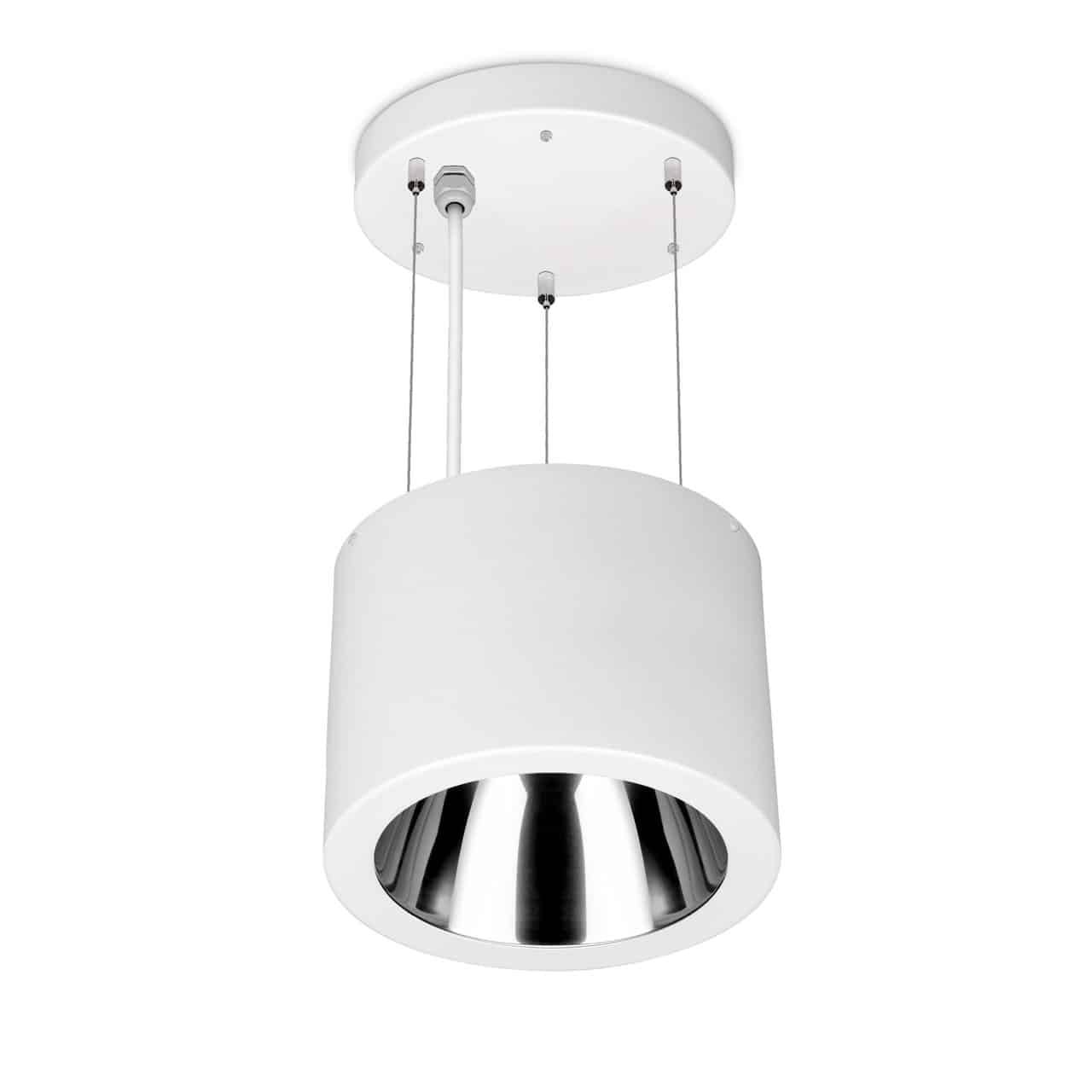

White

White

Grey

Grey

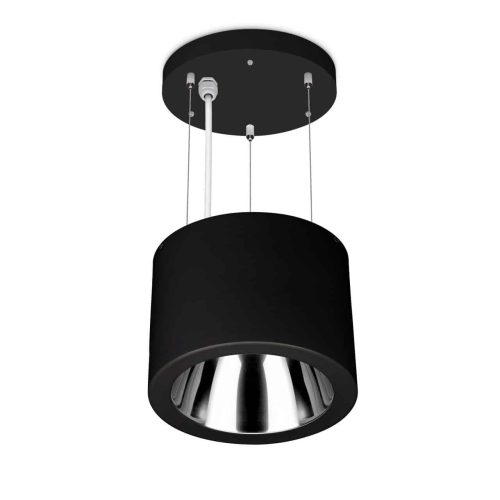

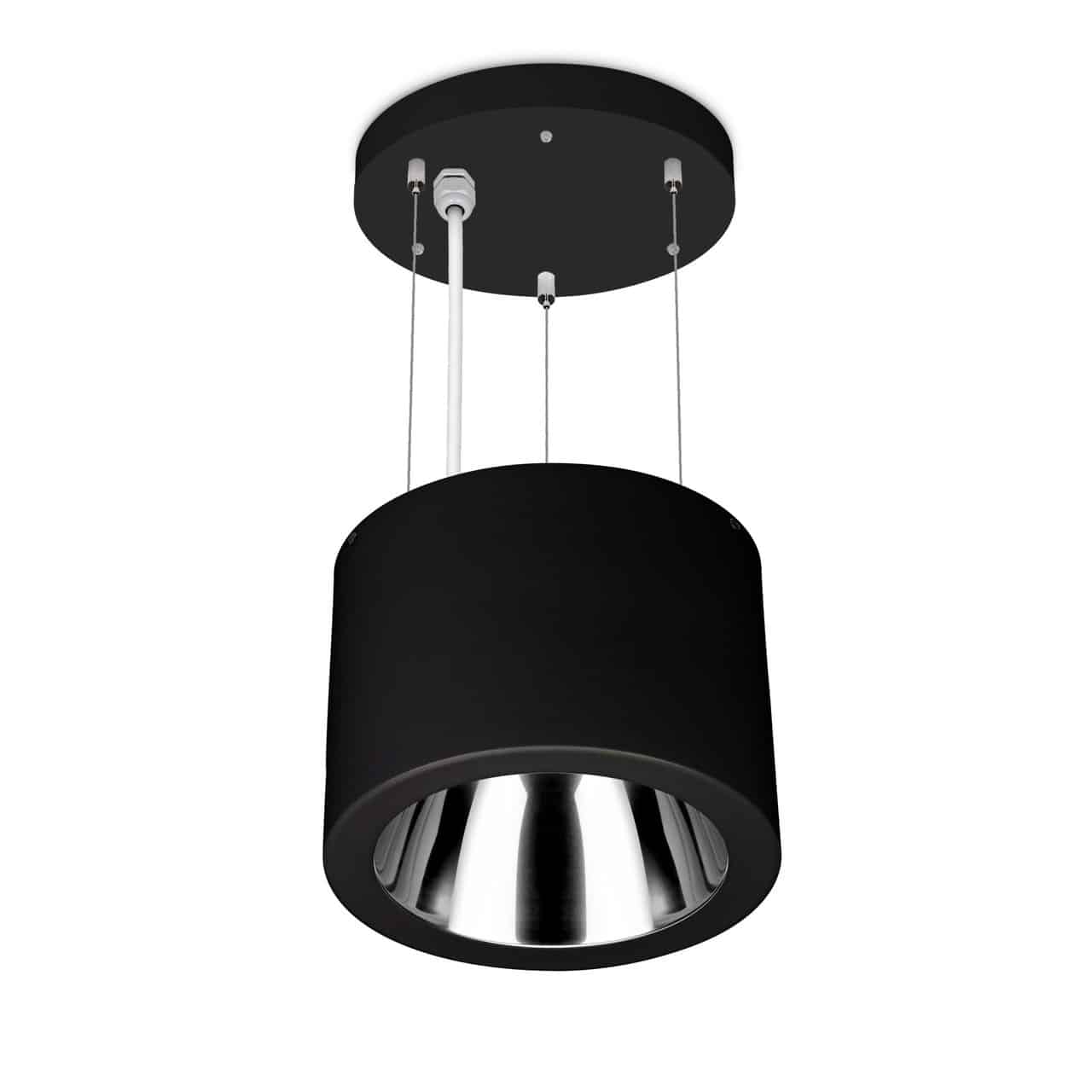

Black

Black

IP Rated Bezels

Clear Polycarbonate

Clear Polycarbonate

Opal Polycarbonate

Opal Polycarbonate

Clear Glass

Clear Glass

Etched Glass

Etched Glass

Centre Etched Glass

Centre Etched Glass

Halo Bezels

Frosted Drop Halo

Frosted Drop Halo

Blue Drop Halo

Blue Drop Halo

Black Drop Halo

Black Drop Halo

Diameter (mm) 203
Height (mm) 152
Weight (kg) 0.85
