Vista

Vista, a downlight with low profile bezel; available with three reflectors; 40° specular, 50° multi-faceted and 60° Satin etched, ideal for office, retail and hospitality lighting.

• Choice of dimming controls, emergency options and colour temperatures

Downloads

Datasheet
Dimensions
Categories: , , Tags: , , , ,

Description

Product Code Lumen Output CCT Wattage Efficacy
VIS LED11 840 BW SA60 1100 840 9.5W 115lm/w
VIS LED19 840 BW SA60 1900 840 17.5W 108lm/w
VIS LED29 840 BW SA60 2925 840 30.5W 96lm/w
VIS LED45 840 BW SA60 4550 840 46.5W 98lm/w
VIS LED 827-865 BW SA60 1725 927-965 17.5W 99lm/w
Colour Temperature (k) 4000k Colour Rendering Index (CRI) 80
Glare Control (UGR) <19 MacAdam SDCM 3
Frequency (Hz) 50-60 Ingress Protection (IP) IP20
Average Lifespan (Hr) 60,000 Operating Temperatures (&degC) -25 to +30
Voltage (V) 220-240 Electrical Protection Class I

*50,000hr for tuneable white version.

CCT 3000k | 4000k | Tuneable
Emergency 3hr | 3hr Dali
Dimming 0-10v | Switch | Dali
Controls Smart
Reflectors 40° | 50° | 60°

IP Rated Bezels

IP54 Etched Glass

IP54 Etched Glass

IP65 Clear Glass

IP65 Clear Glass

Installation Accessories

Adapter Plate

Adapter Plate

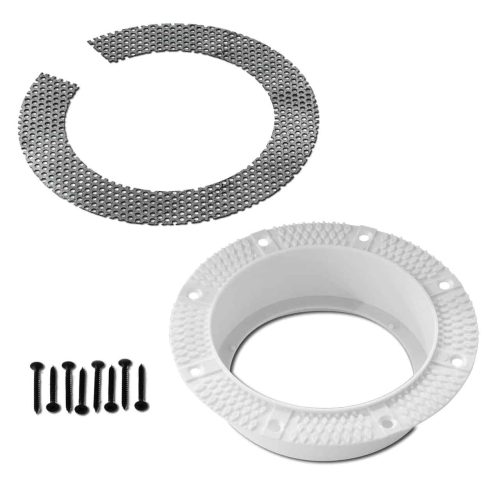

Plaster-in Kit

Plaster-in Kit

Diameter (mm) 195
Cut-out (mm) 176
Height (mm) 120*
Weight (kg) 1.8

*140mm for LED45
