Iris Adjustable

The Iris Adjustable LED downlight has a choice of four reflectors: 25°, 60° multi-faceted, 40° specular and 50° Satin etched and a wide range of bezels.

  • Various dimming controls, emergency options and colour temperatures are available
  • Ideal for office, retail and hospitality lighting
  • Available in surface and suspended versions

Downloads

Datasheet
Dimensions
Categories: , , Tags: , , , , , , ,

Description

Product Code Lumen Output CCT Wattage Efficacy
IRI ADJ LED6 W MF40 675 840 6W 112lm/w
IRI ADJ LED12 W MF40 1250 840 12W 104lm/w
IRI ADJ LED19 W MF40 1925 840 18W 107lm/w
IRI ADJ LED26 W MF40 2600 840 27W 96lm/w
IRI ADJ LED35 W MF40 3500 840 32W 109lm/w
IRI ADJ LED49 W MF40 4950 840 48W 103lm/w
Colour Temperature (k) 4000k Colour Rendering Index (CRI) 90
Glare Control (UGR) <19 MacAdam SDCM 3
Frequency (Hz) 50-60 Ingress Protection (IP) IP20
Average Lifespan (Hr) 50,000 Operating Temperatures (&degC) -25 to +30
Voltage (V) 220-240 Electrical Protection Class I
CCT 3000k | 4000k
Emergency 3hr | 3hr Dali
Dimming 0-10v | Switch | Dali
Controls Smart
Trim Colour White 9010| White 9016 | Black | Any RAL Colour
Reflectors 25° | 40° | 50° | 60°*

*Not available in LED35 or LED49

Bezel Colours

White 9016

White 9016

White 9010

White 9010

Grey

Grey

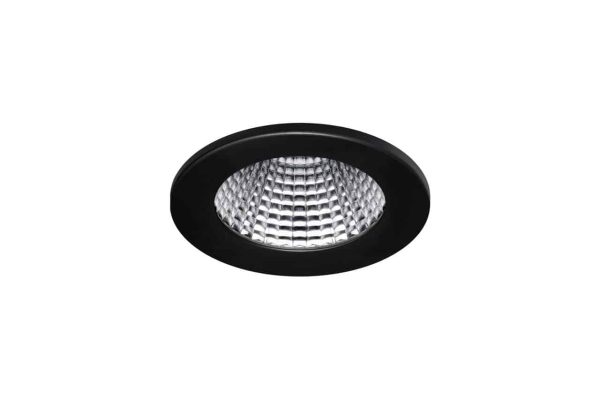

Black

Black

IP Rated Bezels

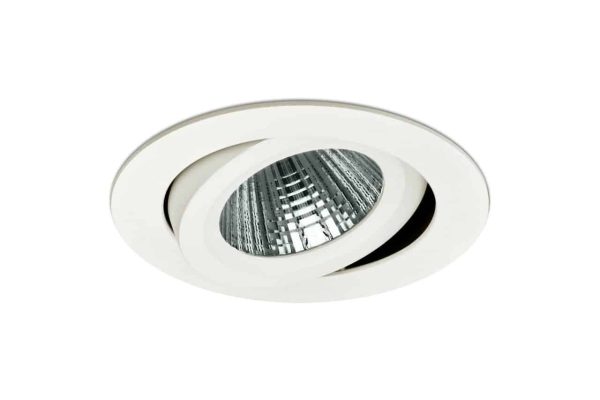

IP54 Clear Glass

IP54 Clear Glass

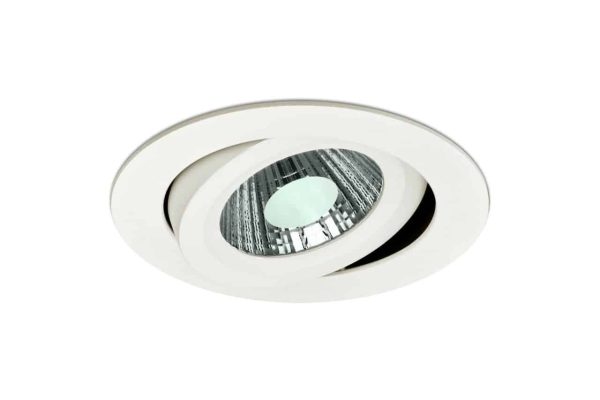

IP54 Centre Etched Glass

IP54 Centre Etched Glass

IP54 Etched Glass

IP54 Etched Glass

Halo Bezels

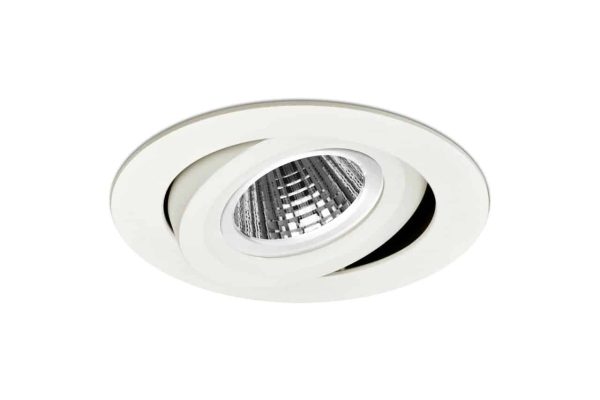

Frosted Halo

Frosted Halo

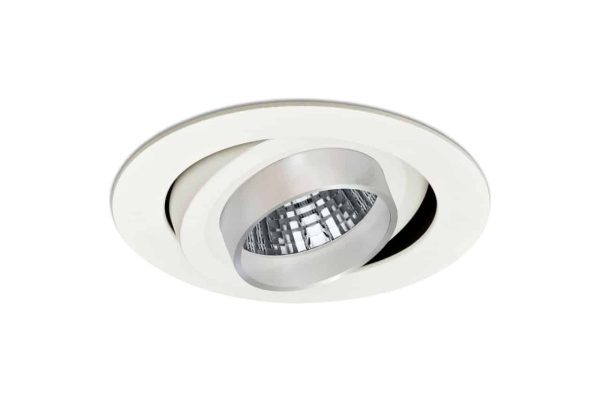

Frosted Drop Halo

Frosted Drop Halo

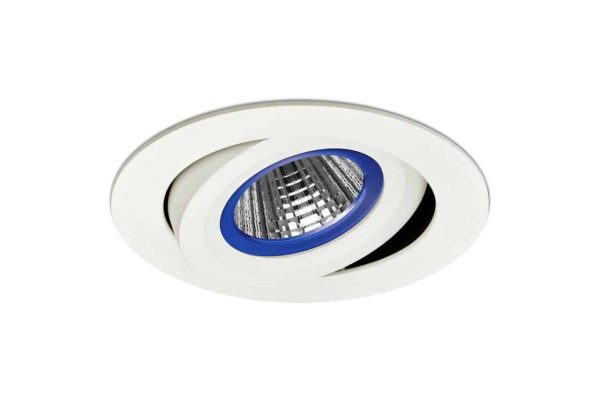

Blue Halo

Blue Halo

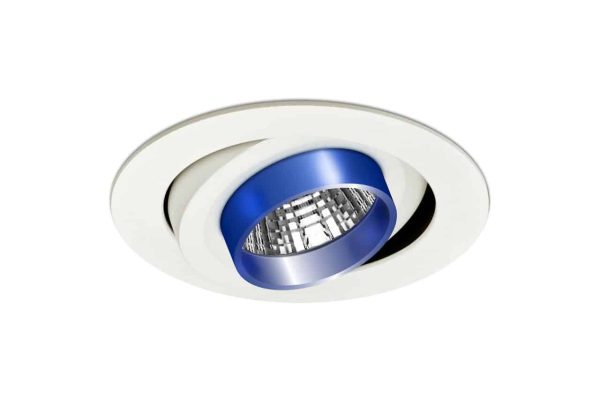

Blue Drop Halo

Blue Drop Halo

Installation Accessories

Adapter Plate

Adapter Plate

Diameter (mm) 186
Cut-out (mm) 176
Height (mm) 102
Weight (kg) 1.2
