Nova Surface

Nova Surface, a downlight with options; available with three reflectors; 40° specular, 50° multi-faceted and 60° Satin etched, ideal for office, retail and hospitality lighting.

• Wide range of bezels
• Choice of body colours and colour temperatures
• Also available in recessed and suspended versions



Downloads

Datasheet
Dimensions
Categories: , , Tags: , , , , ,

Description

Product Code Lumen Output CCT Wattage Efficacy
NOV SRF LED9 840 SA60 975 840 10W 98lm/w
NOV SRF LED17 840 SA60 1750 840 18W 97lm/w
NOV SRF LED26 840 SA60 2650 840 27W 98lm/w
Colour Temperature (k) 4000k Colour Rendering Index (CRI) 80
Glare Control (UGR) <19 MacAdam SDCM 3
Frequency (Hz) 50-60 Ingress Protection (IP) IP20
Average Lifespan (Hr) 50,000 Operating Temperatures (&degC) -25 to +30
Voltage (V) 220-240 Electrical Protection Class I
CCT 3000k | 4000k
Body Colour White | Grey | Black | Any RAL Colour
Reflectors 40° | 50° | 60°

Body Colours

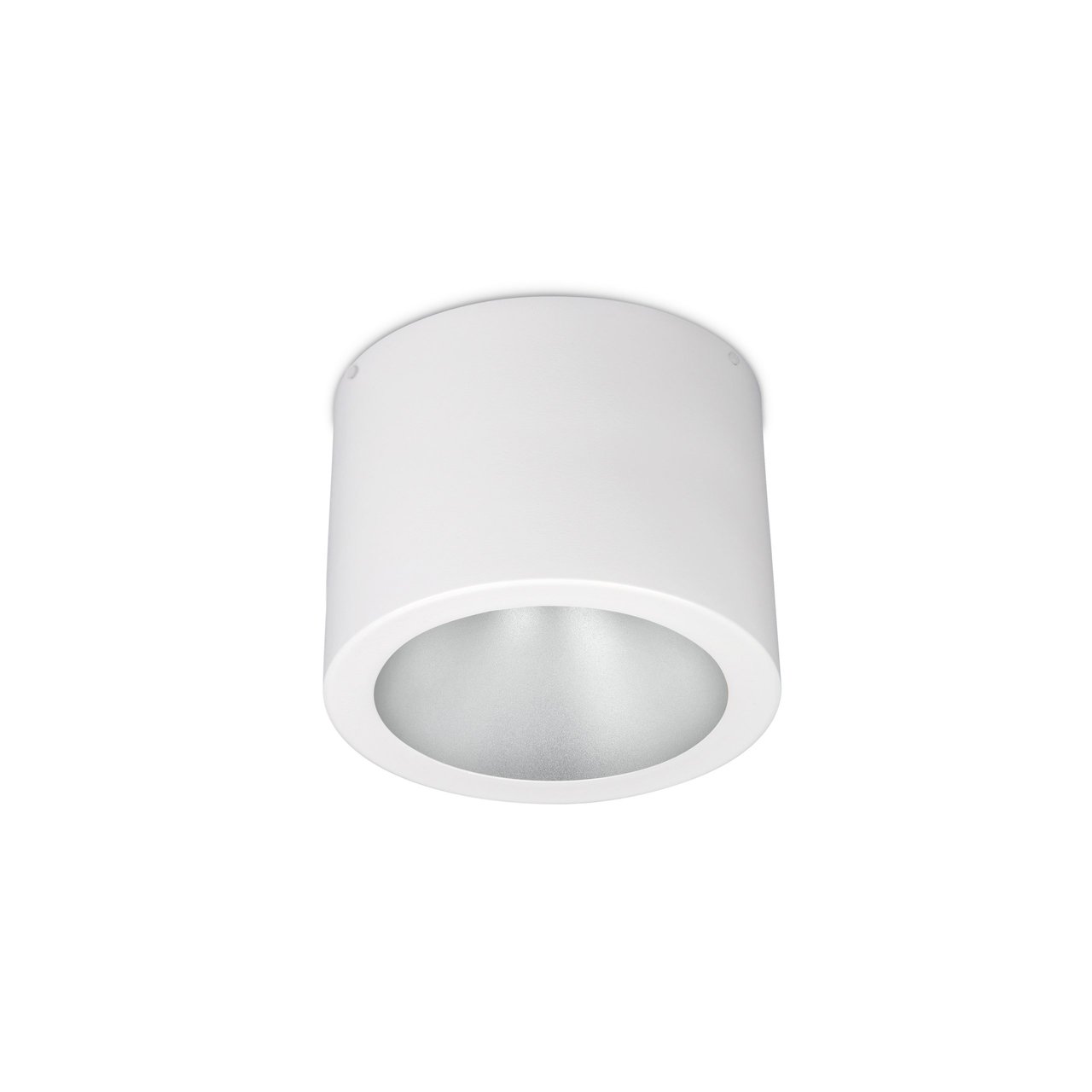

Nova Surface White

Nova Surface White

Nova Surface Grey

Nova Surface Grey

Nova Surface Black

Nova Surface Black

IP Rated Bezels

IP44 Prismatic

IP44 Prismatic

IP54 Etched Glass

IP54 Etched Glass

IP54 Centre Etched Glass

IP54 Centre Etched Glass

IP54 Clear Polycarbonate

IP54 Clear Polycarbonate

IP54 Opal Polycarbonate

IP54 Opal Polycarbonate

IP65 Clear Glass

IP65 Clear Glass

IP65 Clear Polycarbonate

IP65 Clear Polycarbonate

IP65 Opal Polycarbonate

IP65 Opal Polycarbonate

Halo Bezels

Frosted Drop Halo

Frosted Drop Halo

Blue Drop Halo

Blue Drop Halo

Nova Blue Halo

Nova Blue Halo

Black Drop Halo

Black Drop Halo

Installation Accessories

Adapter Plate

Adapter Plate

Plaster-in Kit

Plaster-in Kit

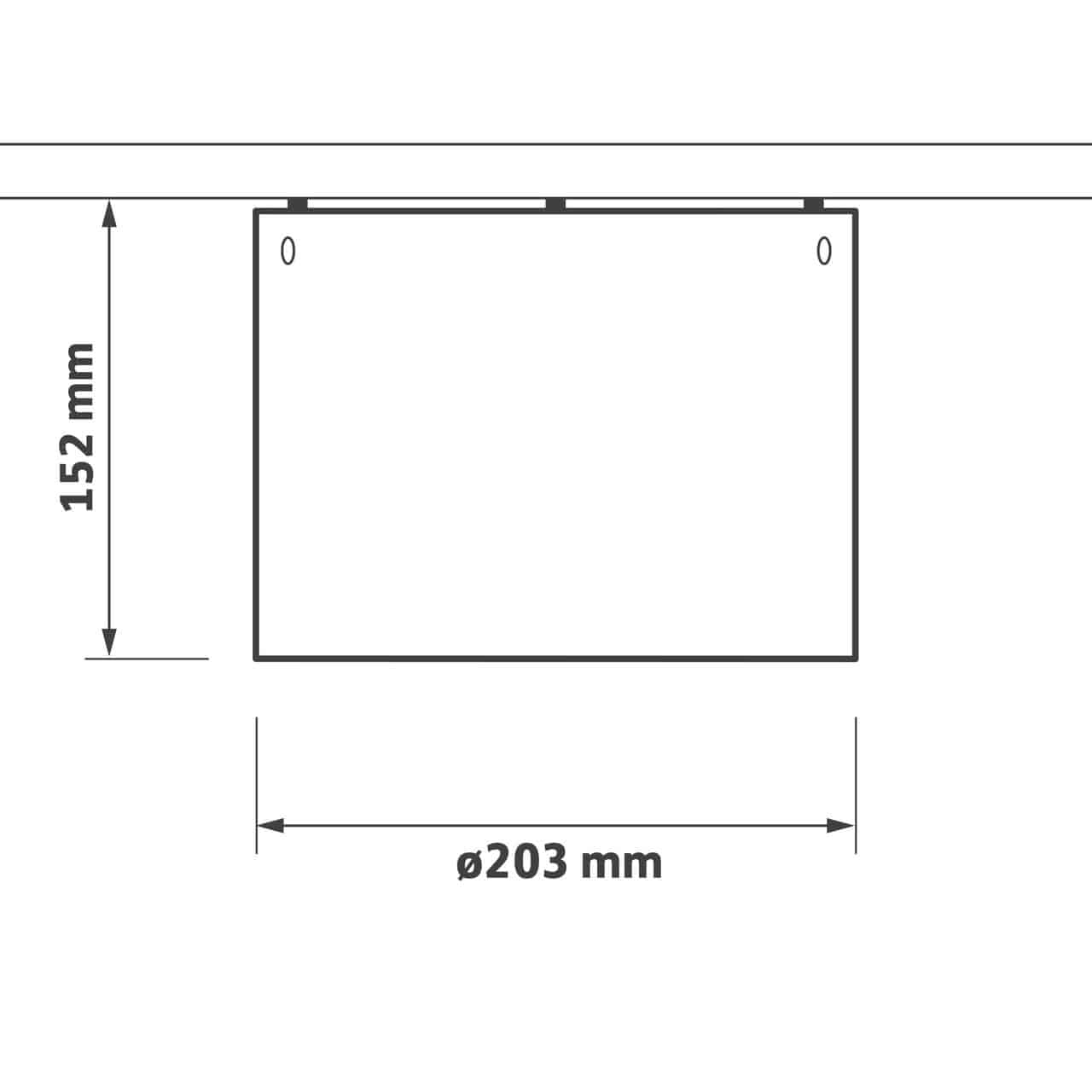

Diameter (mm) 203
Height (mm) 152
Weight (kg) 0.85
